商品の詳細:
|
| HSコード: | 68042210 | 最大作業: | 80 m/s |
|---|---|---|---|
| 結合剤: | 樹脂結合 | iterm no。: | FMC1151022 |
| 色: | 黒 | 特徴: | 長寿命、速くカットされ、耐久性があります |
| 硬度: | C60RBF | 寸法: | 4.5 "x 1/25" x 7/8 " |

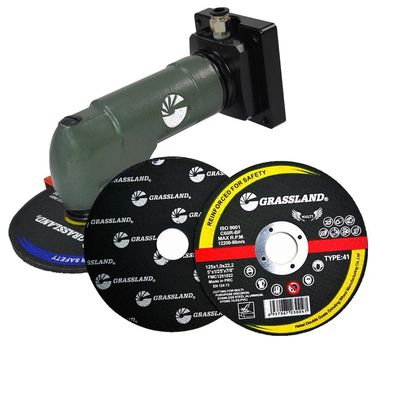

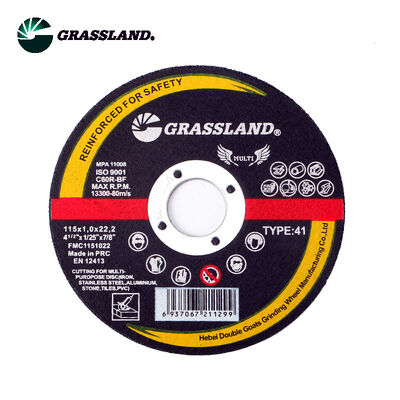

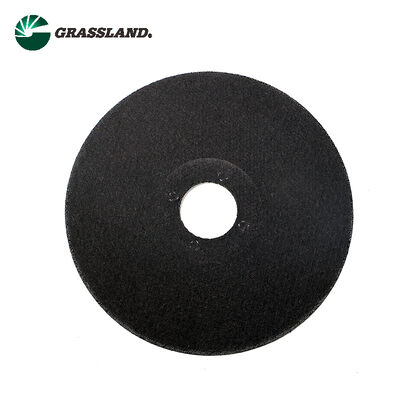

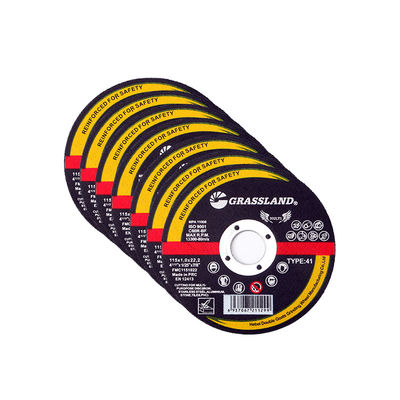

GRASSLAND 4.5" Multi Cutting Discs 115mm X 1.0mm X 22.2mm Angle Grinder
Products Description--
Material: Resin
Diameter: 115mm/ 4.5 "
Thickness: 1.0mm / 1/25"
Hole Size: 22.2mm / 7/8"
Max Operating Speed: 13300 RPM
Use: Angle Grinder
Multi Purpose Cutting Disc is a key solution in the industrial goods industry, specifically within Grinding tools and abrasives and cutting disc.
In high-throughput fabrication and MRO environments, a Multi Purpose Cutting Disc streamlines inventory and boosts productivity by handling a wide mix of materials with one SKU. Built on a reinforced resinoid bond with premium alumina or blended abrasives, these thin-cut wheels deliver fast, cool cuts with minimal burr on steel, stainless, thin-wall tube, profiles, and sheet. Popular formats include 115mm multi purpose cutting disc for angle grinders, engineered for a maximum operating speed aligned with 80 m/s standards. For plants standardizing handheld tools, a multi purpose cutting disc for angle grinder reduces changeovers and simplifies training.
Features and benefits
1. Multilevel excellent glass fiber mesh and resin as reinforced bonded material. High cutting efficiency.
2. These good quality and long lasting discs ensure fast, straight and clean cutting
3. Continuous wheel blade offers smooth and chip-free cuts
Application:
Applications: All Stainless Steel and Non-ferrous Metal applications - Contaminant Free: Iron Sulfur, Chlorine ≤0.1%
| Cutting wheel information: | |||
| Product Name | 115 X 1.0 X 22.2 MM | Abrasive | Monocrystalline fused alumina |
| Hardness | R Grade | Net Standard | Reinforced fiberglass |
| Max working speed | 80 m/s | OEM Service | Acceptable |
| R.P.M | 13300 | Package | Kraft Carton and Pallet |
| Grit size | 60# | HS Code | 68042210 |
| Certificate | MPA EN12413,ISO9001 | Loading Port | Tianjin or else |
-Depressed center Inox grinding discs
| Item Code | Dimension | Dimension | Speed | Standard |
| (MM) | (Inch) | (r.p.m) | ||
| DAC1002516 | 100*2.5*16 | 4*3/32*5/8 | 15200 | 80m/s |
| DAC1003016 | 100*3.0*16 | 4*1/8*5/8 | 15200 | 80m/s |
| DAC1152522 | 115*2.5*22.23 | 4-1/2*3/32*7/8 | 13300 | 80m/s |
| DAC1153022 | 115*3.0*22.23 | 5*1/8*7/8 | 13300 | 80m/s |
| DAC1252522 | 125*2.5*22.23 | 6*3/32*7/8 | 12200 | 80m/s |
| DAC1253022 | 125*3.0*22.23 | 7*1/8*7/8 | 12200 | 80m/s |
| DAC1502522 | 150*2.5*22.23 | 4-1/2*3/32*7/8 | 10200 | 80m/s |
| DAC1503022 | 150*3.0*22.23 | 5*1/8*7/8 | 10200 | 80m/s |
| DAC1802522 | 180*2.5*22.23 | 6*3/32*7/8 | 8500 | 80m/s |
| DAC1803022 | 180*3.0*22.23 | 7*1/8*7/8 | 8500 | 80m/s |
| DAC2302522 | 230*2.5*22.23 | 9*3/32*7/8 | 6600 | 80m/s |
| Description of goods | Item No | Specification | Unit | PCS/CTN | N.W./G.W.(KGS) | CARTON SIZE(CM) |
| Flat cutting disc for inox/Alu 80m/s | FSC0751009 | T41-75X1.0X9.5MM | PC | 800 | 9/10 | 34*17*17 |
| FSC0751695 | T41-75X1.6X9.5MM | PC | 800 | 14/15 | 34*20*17 | |
| FSC1001016 | T41-100X1.0X16MM | PC | 400 | 8.5/9.5 | 22*22*15.7 | |
| FSC1002016 | T41-100X2.0X16MM | PC | 400 | 15/16 | 29.7*22*22 | |
| FSC1151022 | T41-115X1.0X22.2MM | PC | 400 | 11/12 | 24.5*24.5*15.7 | |
| FSC1151622 | T41-115X1.6X22.2MM | PC | 400 | 14/15 | 24.5*24.5*19.2 | |
| FSC1152022 | T41-115X2.0X22.2MM | PC | 200 | 9.5/10.5 | 24.5*24.5*13.2 | |
| FSC1251022 | T41-125X1.0X22.2MM | PC | 400 | 13/14 | 26.5*25.6*15.7 | |
| FSC1251622 | T41-125X1.6X22.2MM | PC | 400 | 17/18 | 26.5*25.6*19.2 | |
| FSC1252022 | TT41-125X2.0X22.2MM | PC | 200 | 10.5/11.5 | 26.5*26.5*13.2 | |
| FSC1501622 | T41-150X1.6X22.2MM | PC | 200 | 12/13 | 32*32*11.7 | |
| FSC1502022 | T41-150X2.0X22.2MM | PC | 200 | 16.5/17.5 | 32*32*13.2 | |
| FSC1801622 | T41-180X1.6X22.2MM | PC | 200 | 20/21 | 37.5*19*22.7 | |
| FSC1802022 | T41-180X2.0X22.2MM | PC | 100 | 10.5/11 | 37.5*19*13.2 | |
| FSC2301622 | T41-230X1.6X22.2MM | PC | 50 | 8/9 | 24*24*11.7 | |
| FSC2302022 | T41-230X2.0X22.2MM | PC | 100 | 18.5/19.5 | 24*24*25.7 |
